| Produktbeschreibung |

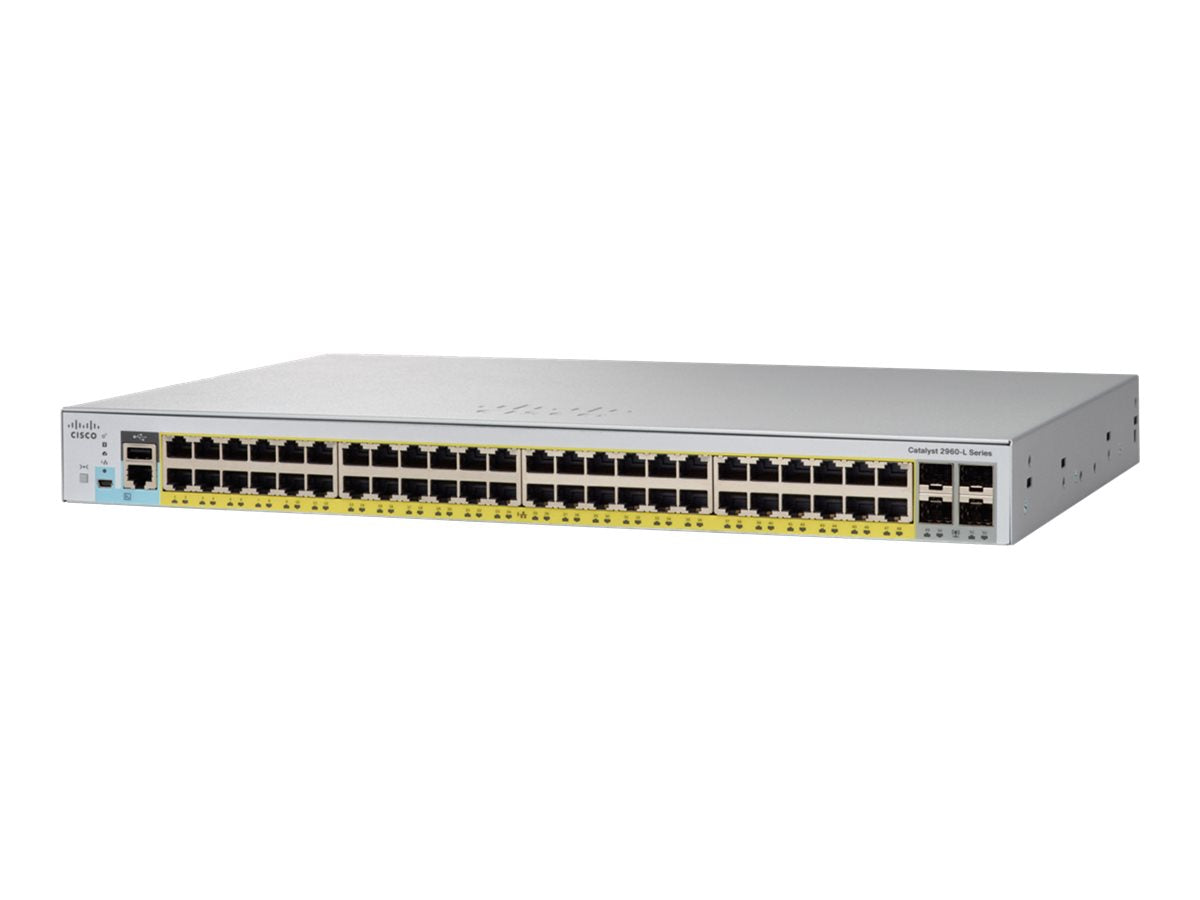

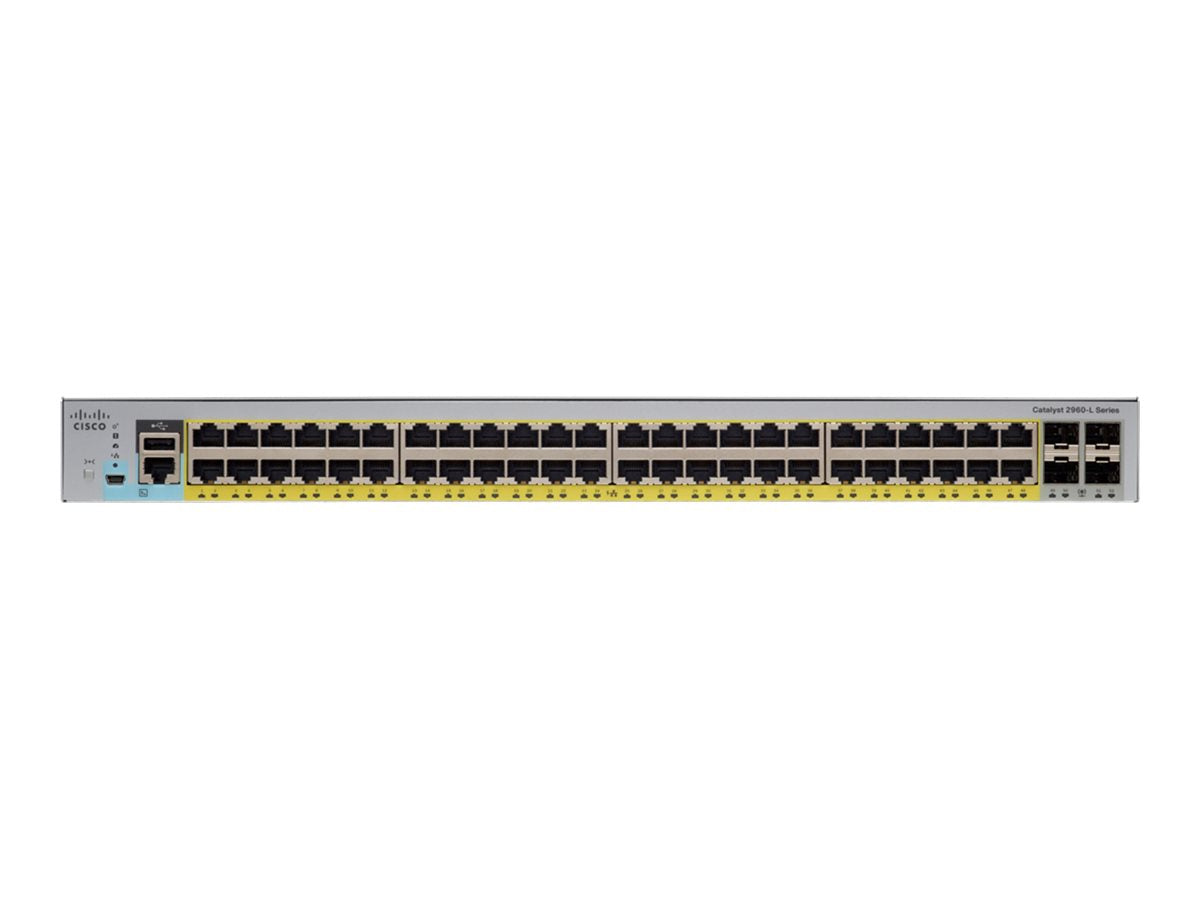

Cisco Catalyst 2960L-SM-48PS - Switch - 48 Anschlüsse - Smart - an Rack montierbar |
| Gerätetyp |
Switch - 48 Anschlüsse - L3 - Smart - stapelbar |
| Gehäusetyp |
An Rack montierbar |
| Untertyp |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+ |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE-Budget |
370 W |
| Leistung |
88 Gbps |
| Schaltbandbreite |
176 Gbps |
| Weiterleitungsrate |
77,38 Mpps |
| Kapazität |
bis zu 8 |
| IPv4-Routen (statisch) |
16 |
| IPv6-Routen (statisch) |
16 |
| IPv6-Gruppen (Multicast) |
1024 |
| Aktive VLANs |
256 |
| VLAN IDs |
4094 |
| STP-Fälle |
64 |
| SPAN-Sitzungen |
4 |
| Maximale Übertragungseinheit (Bytes) |
9198 Byte |
| Jumbo-Rahmenunterstützung |
10.240 Byte |
| Routing Protocol |
RIP, IGMP, MLDv2, MLD |
| Remoteverwaltungsprotokoll |
RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, NTP |
| Leistungsmerkmale |
DHCP Support, Auto-Negotiation, IGMP Snooping, Multicast Storm Control, Unicast Storm Control, MSTP Support, DTP-Unterstützung, PAgP-Unterstützung, Cisco EnergyWise-Technologie, UDLD, Rapid PVST+, ohne Lüfter, SRR, LACP, MAC Address Notification, statisches Routing, CoS, DSCP-Unterstützung, IP-Quellwächter, WTD, VTP, BPDU, STRG, AAA, Voice VLAN, Proxy ARP, EEE, SPAN, Enhanced QoS, BPDU Guard, Rapid Reconfiguration of Spanning Tree (RSTP) |
| Produktzertifizierungen |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
| Stromversorgung |
Wechselstrom 120/230 V (50 - 60 Hz) |
| Abmessungen (Breite x Tiefe x Höhe) |
4.4 cm x 29.2 cm x 44.5 cm |
| Gewicht |
4.57 kg |
